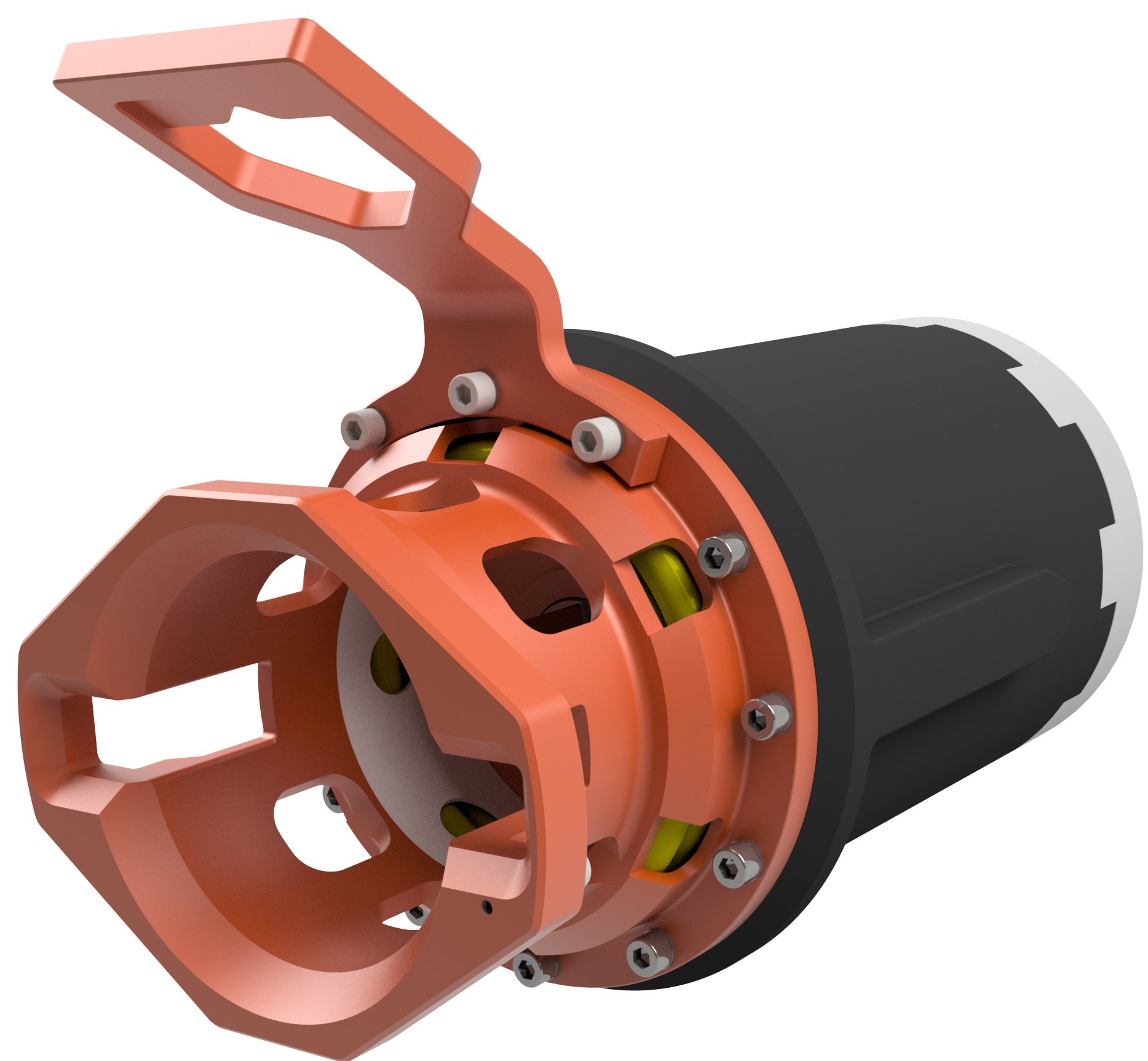

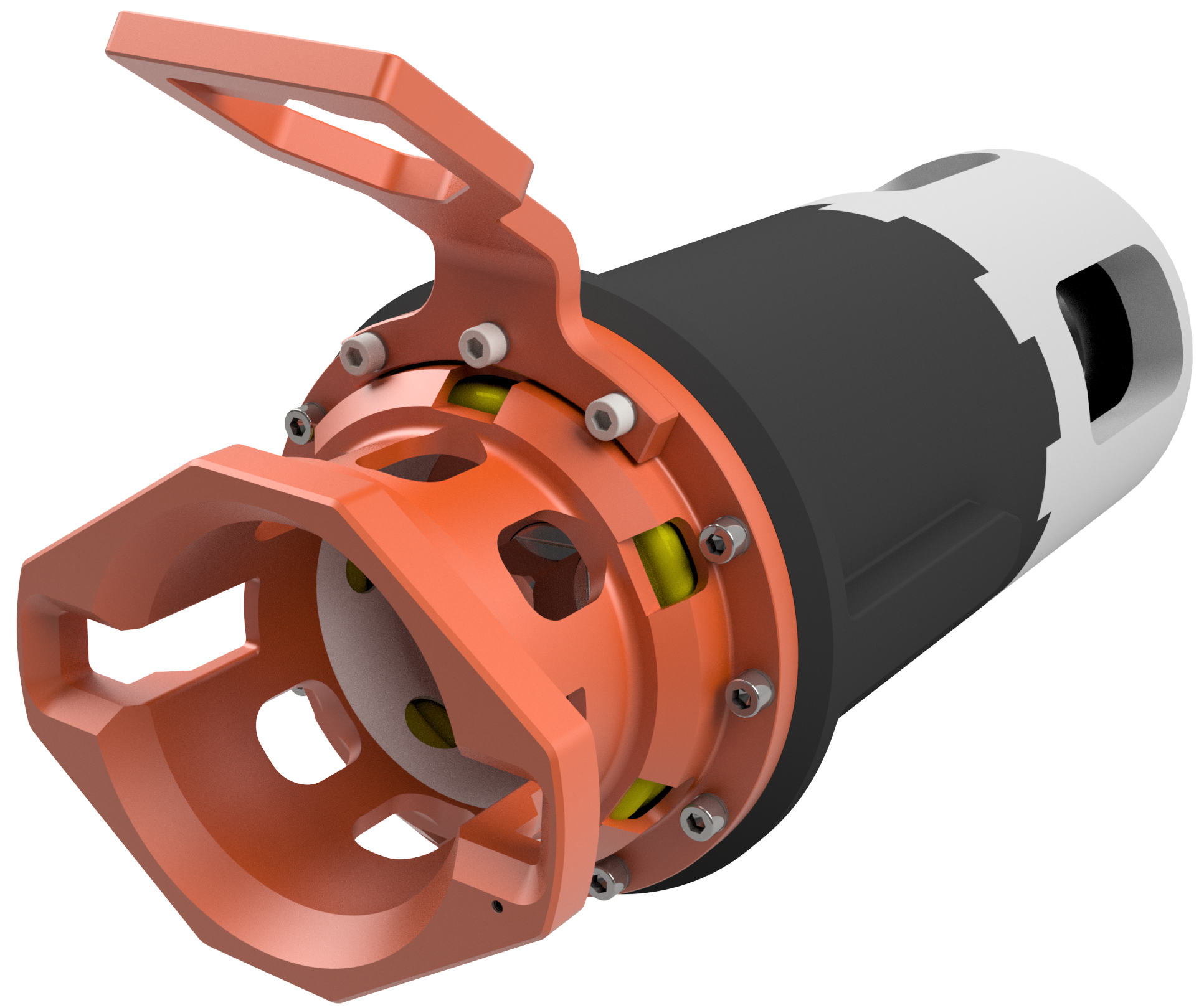

The Blue Logic API 17H / Class 6&7 Gearbox is designed to enable operation of Class 7 and Class 6 interfaces using a Class 4 torque tool for maximum flexibility at minimum cost.
The gearbox can be configured for both short and long Class 7 interface, in addition to Class 6 using a square insert.
The gearbox is delivered as a complete kit including required components to adapt the tool to the interfaces as described above.
Available in 10kNm, 15kN and 40kNm gear-ratio configurations. The oil-filled gear housing is pressure compensated by integrated compensator to allow operations down to 3000m depth.
Easy deck-replaceable interface to shift between short and long nose and also other interfaces such as Aker Solution’s GHO interface etc.
The Gearbox is also available in long-term/permanent version for prolonged subsea service.
